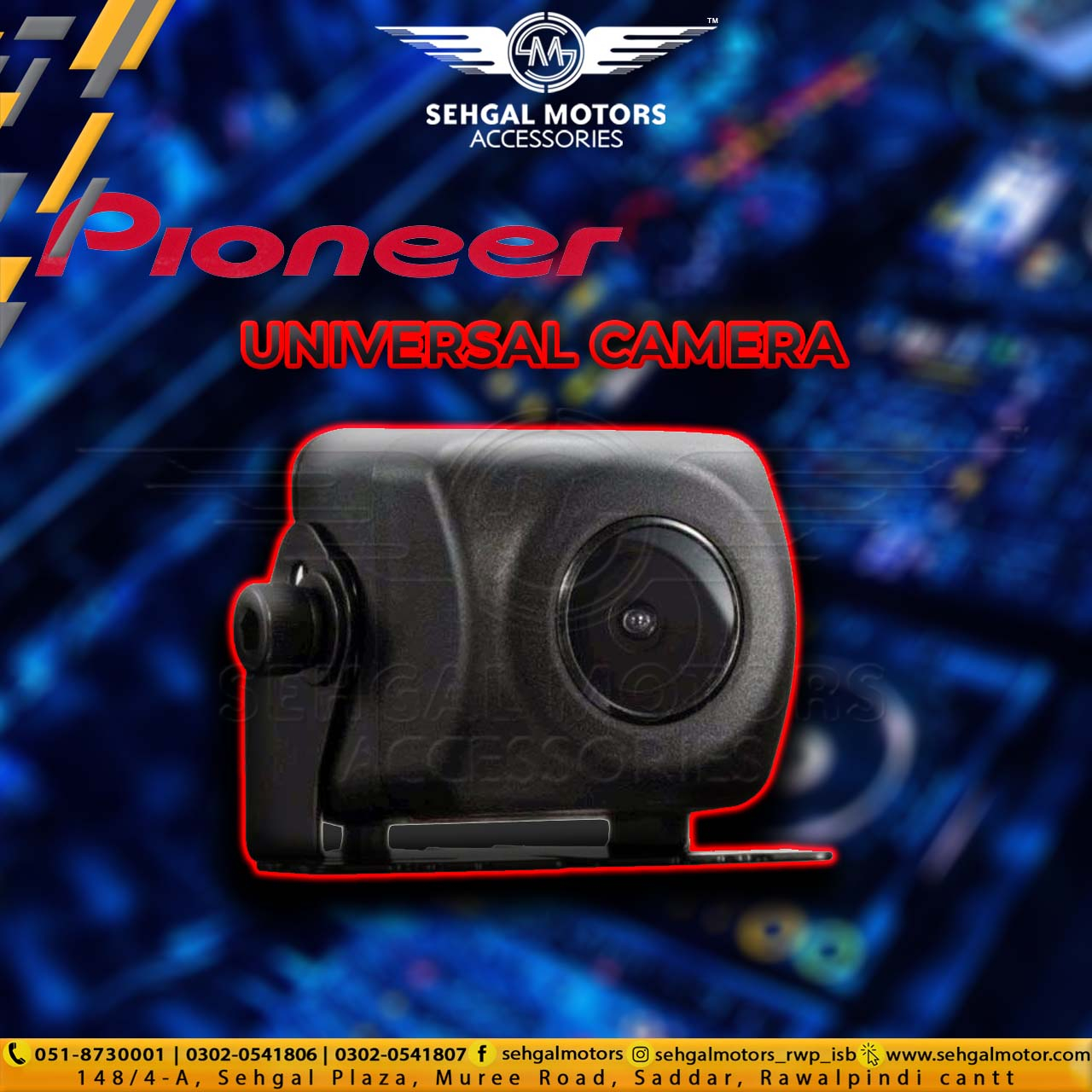

Pioneer Universal Back Camera

1/4-inch color CMOS Sensor with approximately 310,000 pixel resolution Wide Angle Lens Horizontal View in Degrees: 129 Vertical View in Degrees: 105 Illumination Range: Approximately .9 lux to 100,000 lux Dimensions (W x H x D) 7/8 in. x 7/8 in. x 1 in The ND-BC8 Universal Rearview Camera is compatible with Pioneer A/V and Navigation in-dash receivers that feature a rear-view camera input. The ND-BC8 features a wide-angle 129 degree horizontal and 105-degree vertical view with more than 300,000-pixel resolution for detailed imagery. The ND-BC8 features a CMOS (Complementary Metal Oxide Semiconductor) sensor that delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use. Installation Flexibility The ND-BC8 utilizes a built-in power supply with minimal connections for easier installation and its compact size provides hassle-free mounting. It also includes 10 meter cable for installation on long trucks, SUVs and recreational vehicles. mproved Visibility The ND-BC8 offers a wide-angle 129 degree view and more than 300,000 pixels for more detailed images. The improved CMOS sensor reduces the glare during daytime use and has improved low-light capability for improved daytime and nighttime use. Additional Features: 1/4-inch color CMOS Sensor with approximately 310,000 pixel resolution Wide Angle Lens Horizontal View in Degrees: 129 Vertical View in Degrees: 105 Illumination Range: Approximately .9 lux to 100,000 lux Dimensions (W x H x D) 7/8 in. x 7/8 in. x 1 in. What’s in the Box Rearview camera w/ bracket (attached 9' power/video cable) 23' Power/video cable 6 Self-adhesive clamps Rubber wedge Two-sided tape Hex-key Owner's Manual
